Good evening.
I own a 2004 Fiat Doblò with an OBD2 port.
Before purchasing, I’ll send you the data I collected with my diagnostics.
I’m attaching some photos showing the connected control units.
-Body computer
-Engine ECU
-Instrument cluster
-Airbag control unit
(In the engine ECU, you can view many parameters, including: engine speed, throttle position, fuel flow, boost pressure, and other things.)
(In the body computer, you can view:
Some information: doors closed or open, turn signals, and other things.)
(In the instrument cluster, you can view:
Odometer, headlight height, engine speed, fuel gauge, engine temperature, battery voltage, vehicle speed, and other parameters.

By purchasing the license, can I view all these parameters? Can I edit and create menus and submenus with the physical buttons on the steering wheel or touch screen?
I hope to receive some answers and contribute to the community. Thank you.

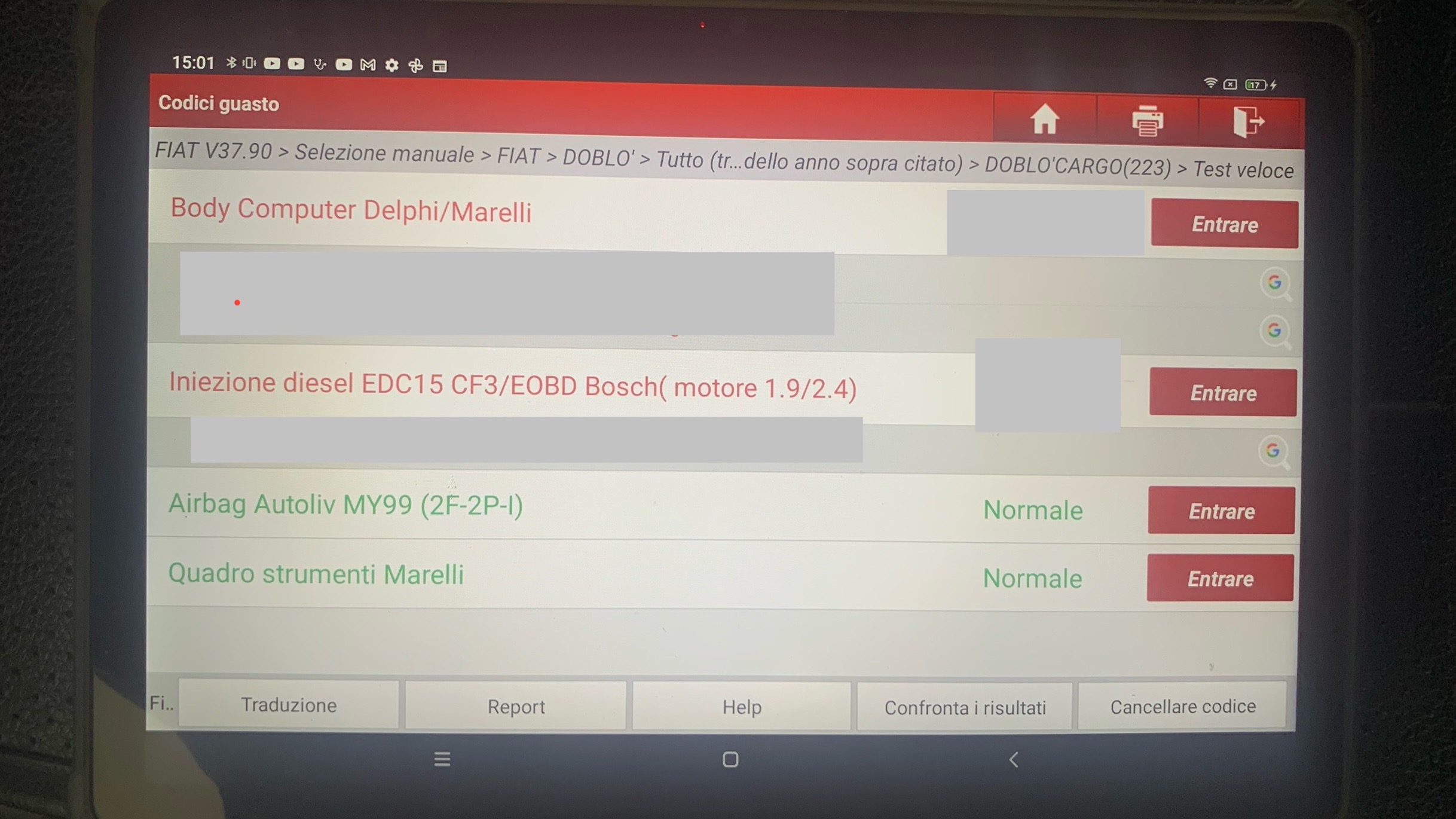

Body_computer_Ecu_motore_Airbag_Qudro_strumenti
Body_computer_Ecu_motore_Airbag_Qudro_strumenti2436×1370 458 KB

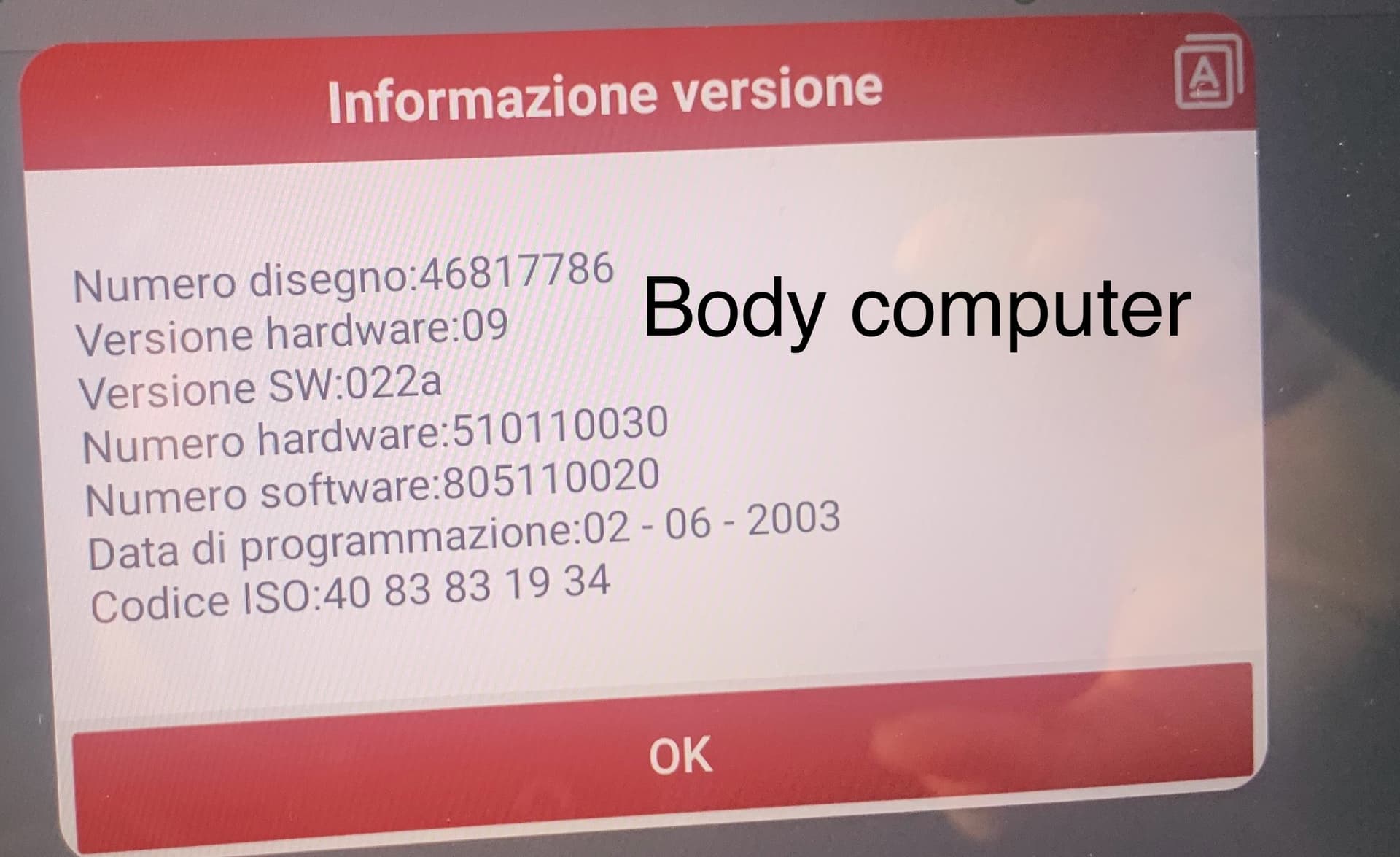

Body_Computer
Body_Computer1920×1175 122 KB

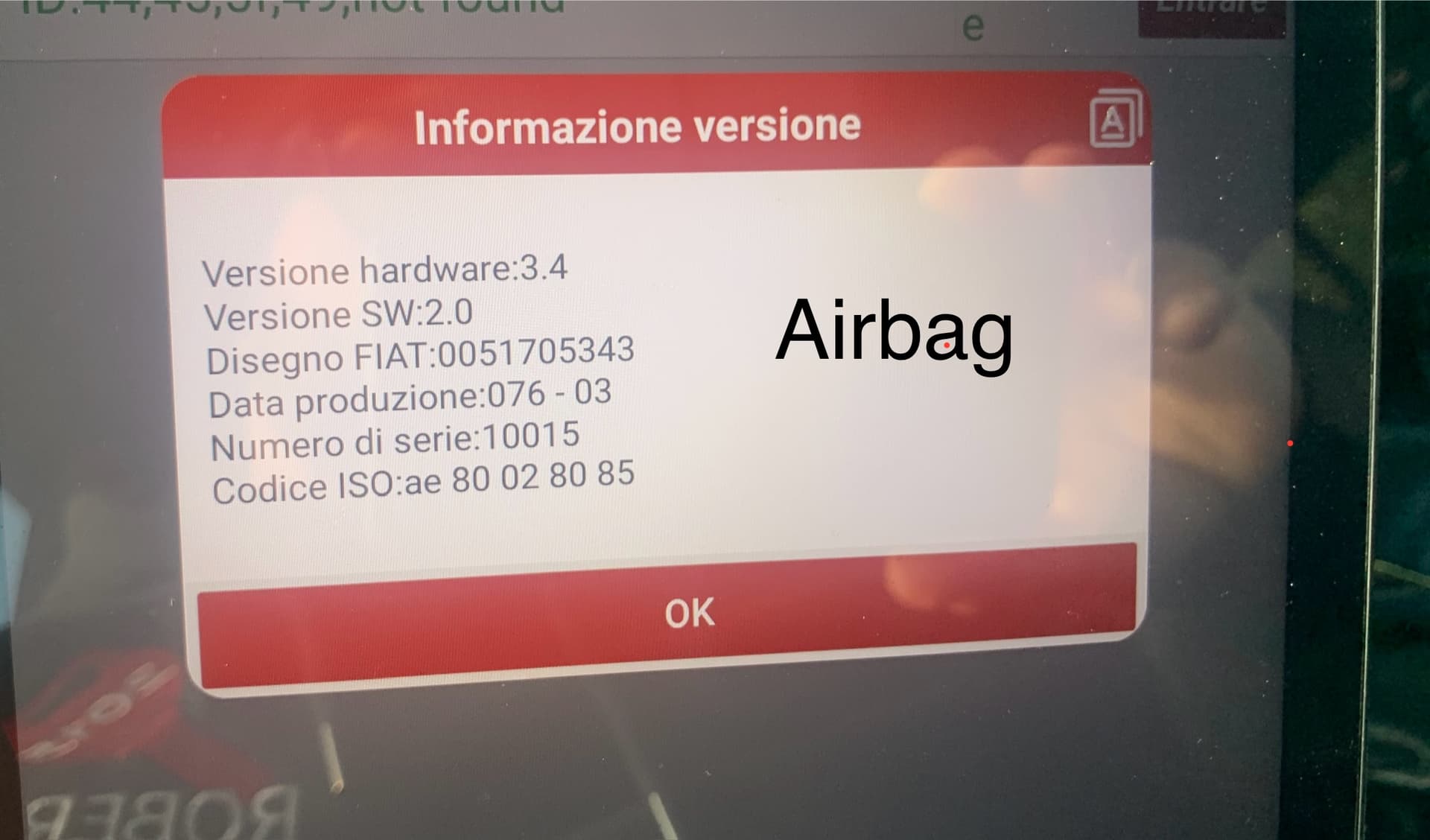

Centralina_Airbag
Centralina_Airbag1920×1128 101 KB

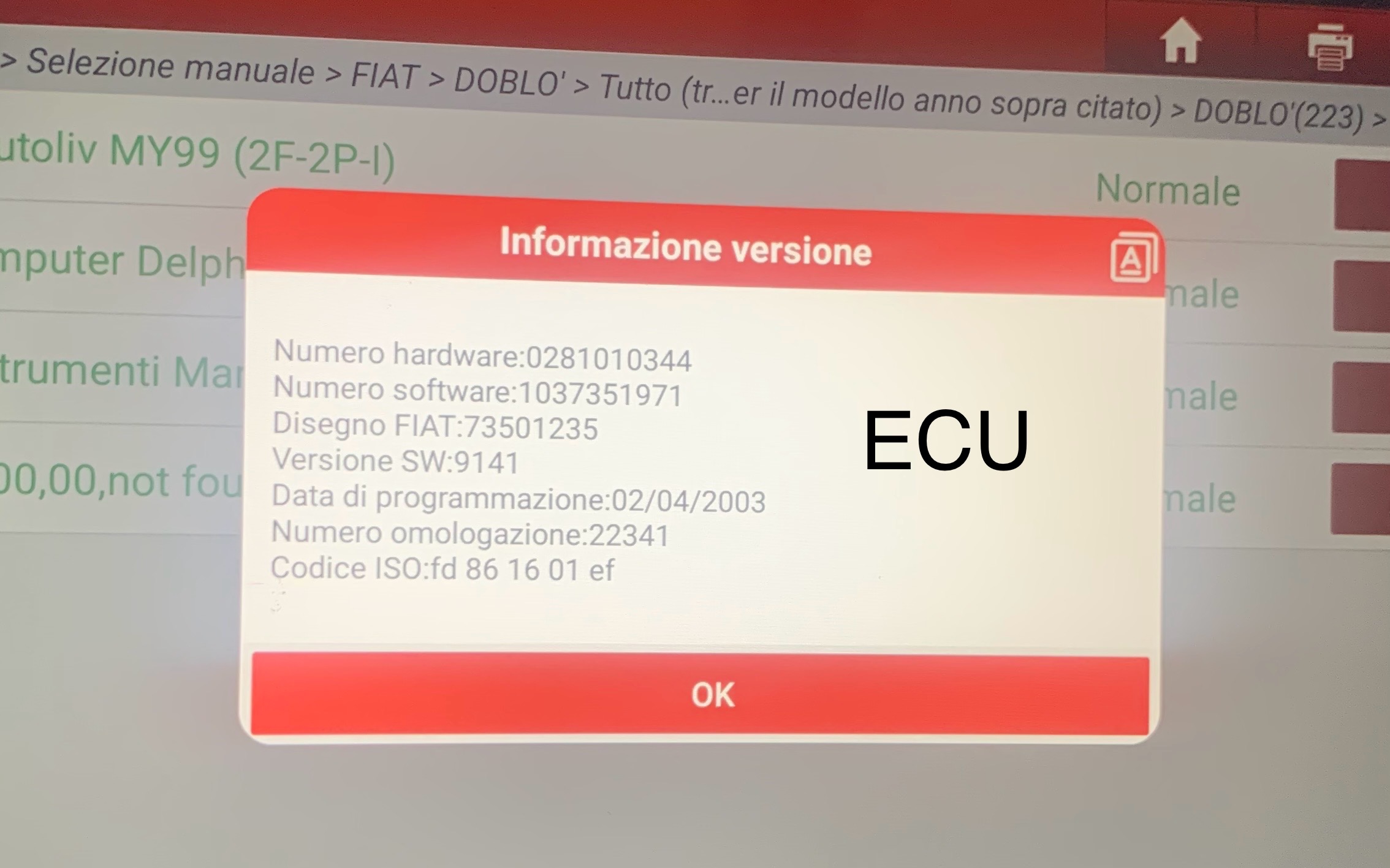

Ecu_Motore
Ecu_Motore2268×1417 303 KB

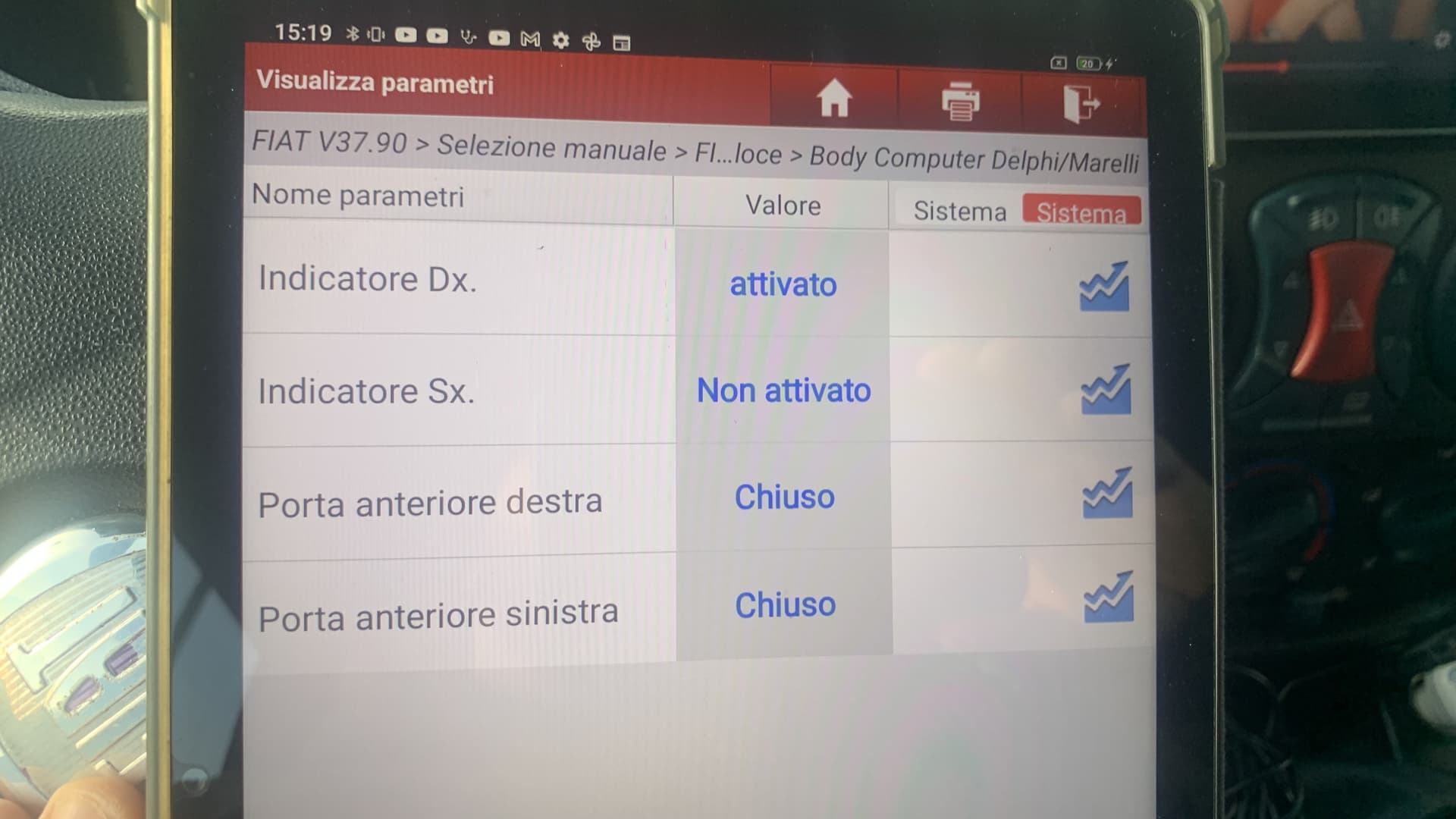

Body_computer_Parametri
Body_computer_Parametri1920×1080 114 KB

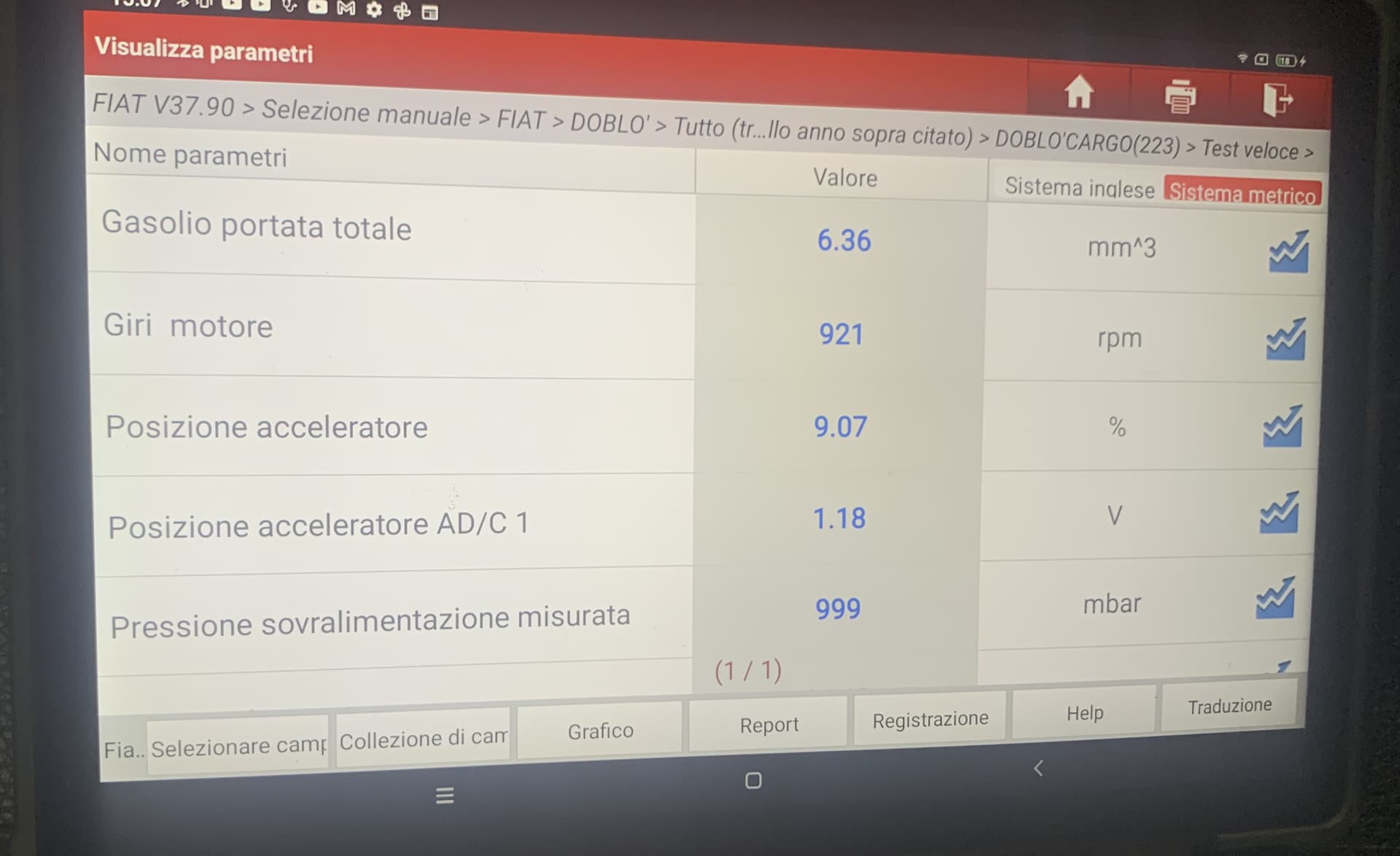

Gasolio_Giri_motore_Posizione_accelleratore_Pressione_sovralimentazione
Gasolio_Giri_motore_Posizione_accelleratore_Pressione_sovralimentazione1920×1174 91.2 KB

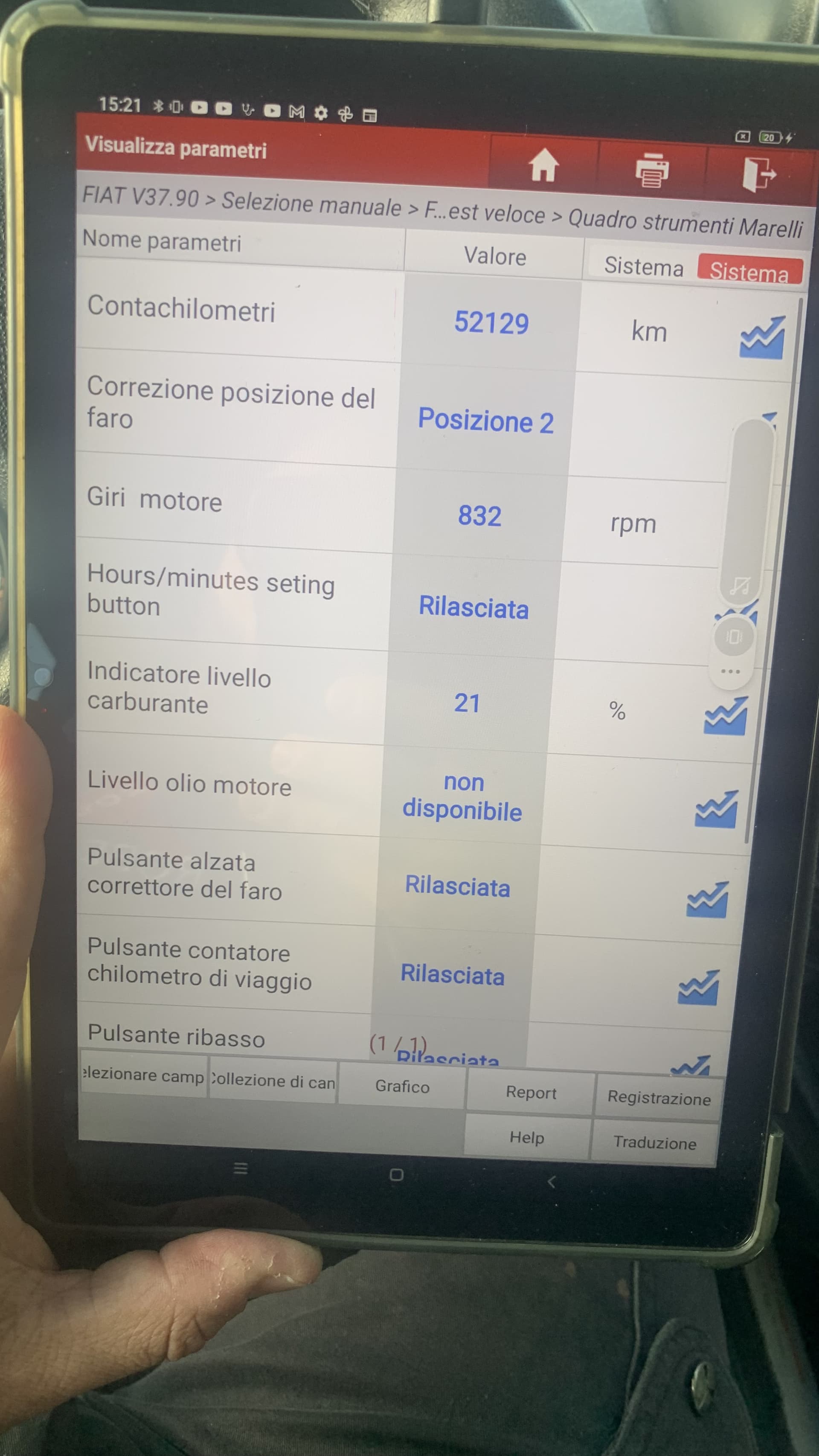

Quadro_strumenti_Parametri_1
Quadro_strumenti_Parametri_11920×3413 287 KB

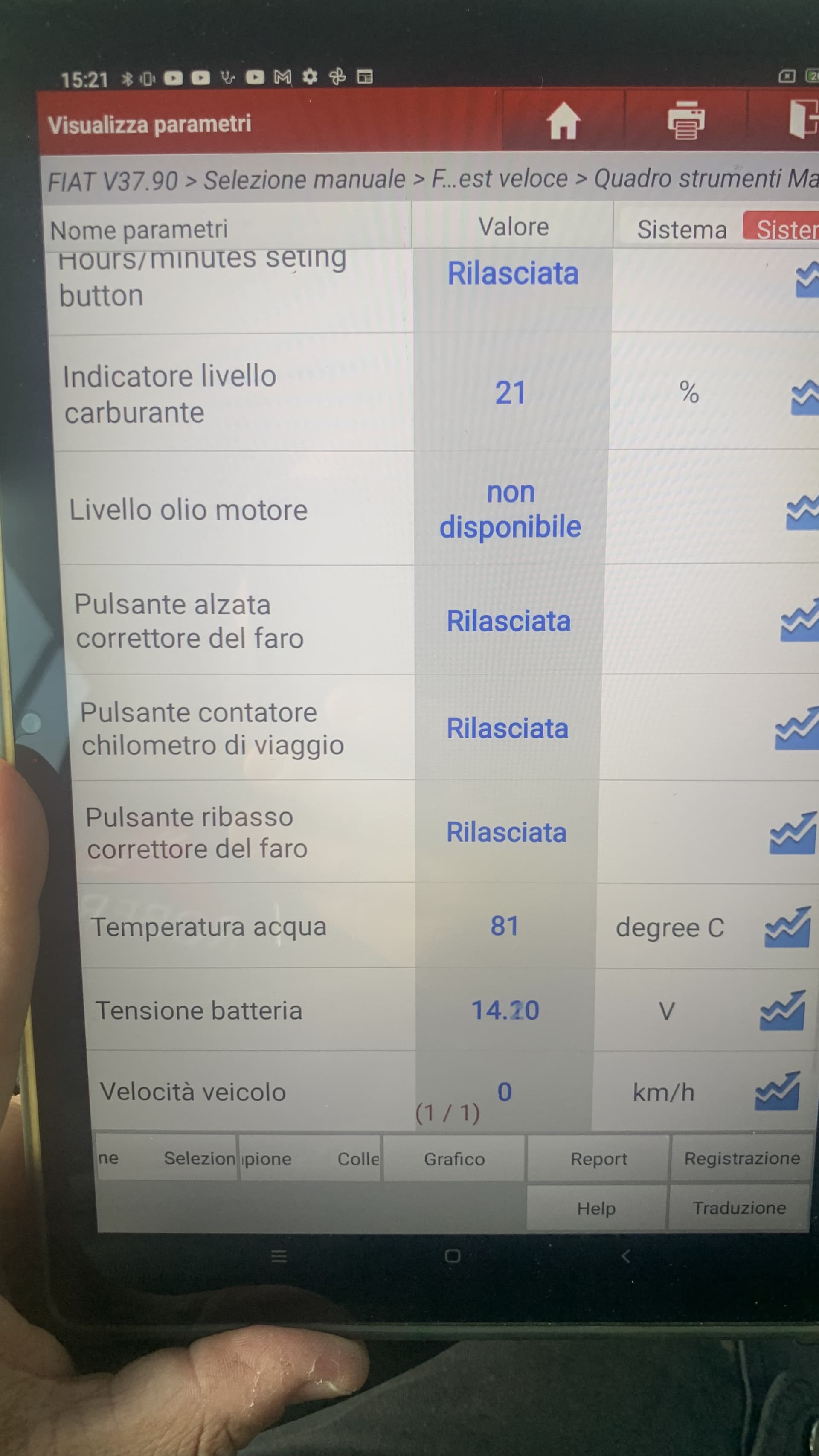

Quadro_strumenti_parametri_2
Quadro_strumenti_parametri_21920×3413 268 KB

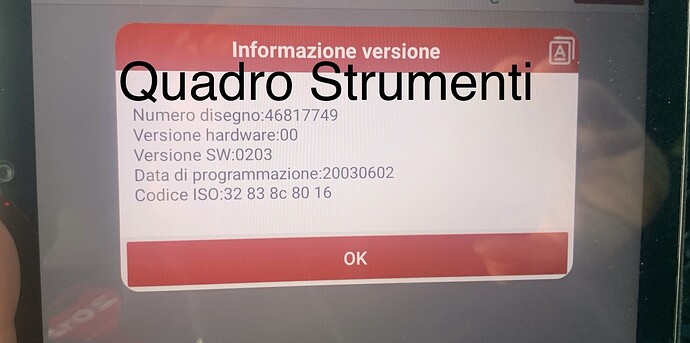

Quadro_strumenti
Quadro_strumenti1871×931 268 KB

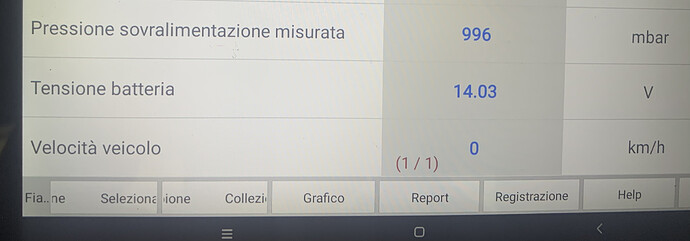

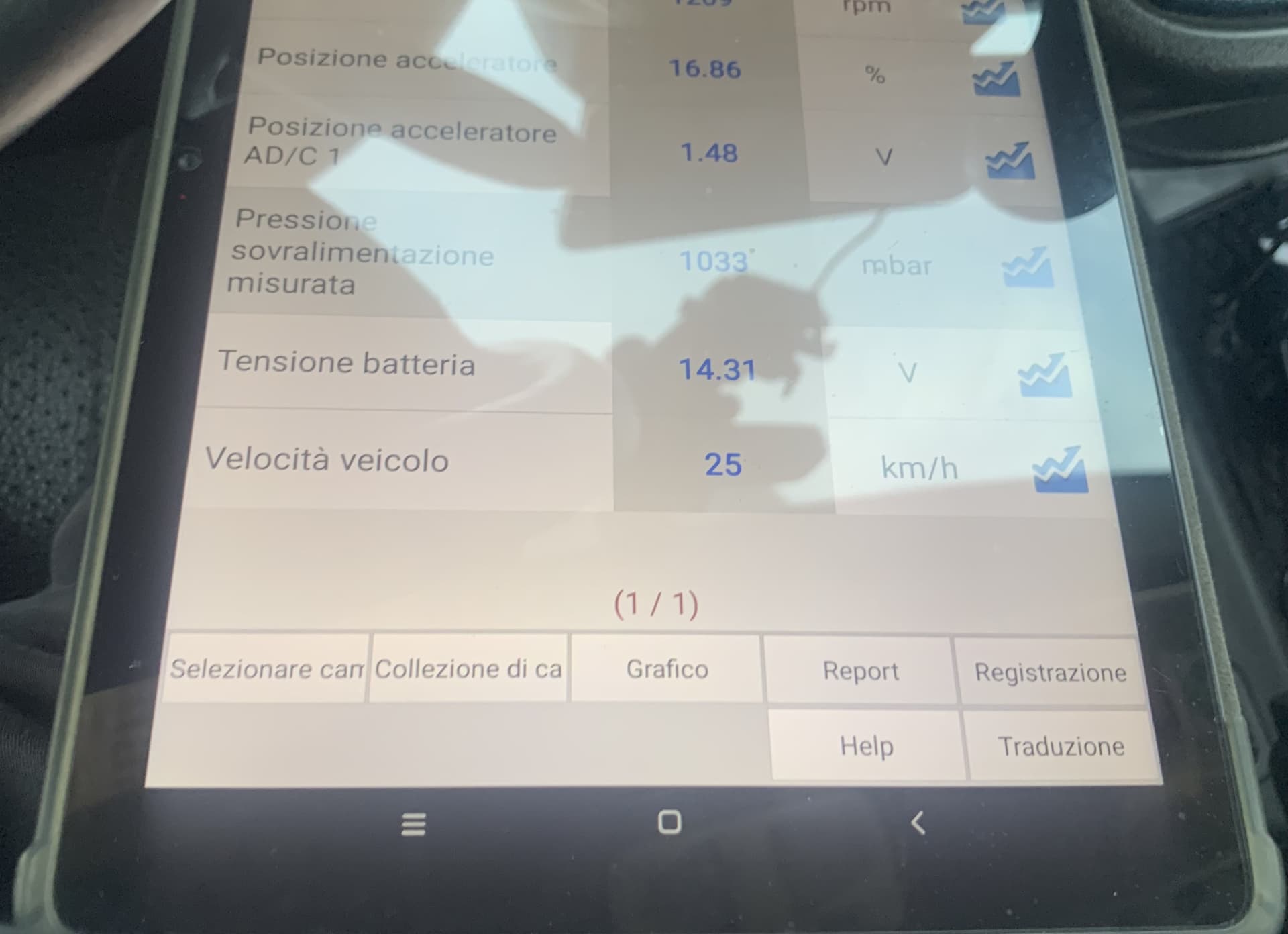

Sovralimentazione_Batteria_velocita_veicolo
Sovralimentazione_Batteria_velocita_veicolo3609×1262 449 KB

Velocita_Veicolo
Velocita_Veicolo1920×1392 95.1 KB

1 Like
2

It is possible, but requires deep knowledge of your vehicle protocol and making a custom OBD2 XML file for read all required data.

Your project is so complex that we do not have resources to help you configure it. But good news is that you do not have to purchase anything to test your connection and use custom XML connection file.
