Can anyone tell me if this is correct XML for RD?

Roadstercycle · December 8, 2025, 8:31pm

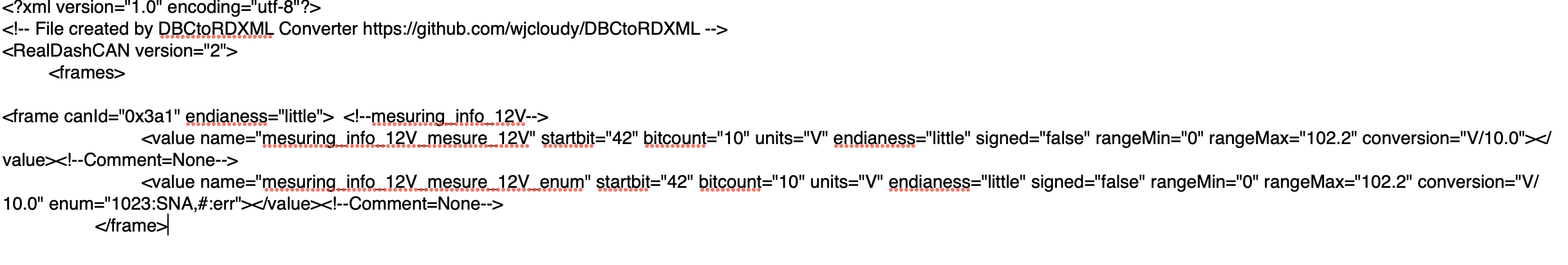

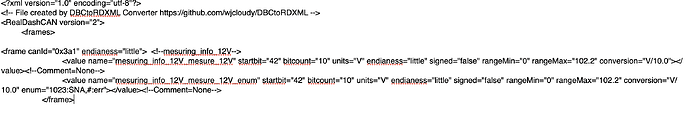

I’ve been pulling my hair out for a week now trying to figure this out. I can see the canbus messages in RD but they won’t show on my dash. I believe the XML is correct but I need another set of eyes on this.

_oaph · December 14, 2025, 1:07am

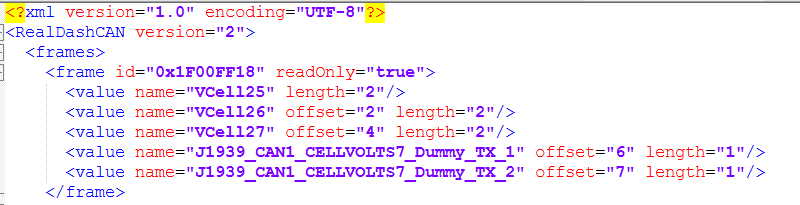

XML in my working setup looks different:

Roadstercycle · December 14, 2025, 1:58am

Thank you I’ll decipher this into my message and give it a shot. Thank you.

_oaph · December 14, 2025, 2:13am

Good luck hopefully this doc CAN help…

github.com/janimm/RealDash-extras

RealDash-CAN/realdash-can-description-file.md

master

&nbsp;
# **Channel Description File (XML)**
The RealDash CAN XML file describes how data in CAN frames are interpreted by RealDash.

XML file starts with tag **RealDashCAN** including the file format version **version="2"**. Next in file is a list of **frames**.

    <?xml version="1.0" encoding="utf-8"?>
    <RealDashCAN version="2">
        <frames>
        <!-- list of frames here -->
        </frames>
    </RealDashCAN>

&nbsp;
## **'baseId' attribute [optional]**
**frames** may optionally contain a attribute **baseId** that is used for the enclosed **frame** tags. Example:

    <frames baseId="3200">

Specifies the **baseId** as 3200 decimal. Any id value in later **frame** is added to the base id. For example, if **frames baseId** is 3200 and it contains a frame with **id** 1, then the frame is considered to have an **id** of 3201.

This file has been truncated. show original

Roadstercycle · December 14, 2025, 4:46am

oaph, That did work either. Boy am I stumped on this one. Showing all can messages scrolling, worked fine for a year and a half and then stopped. Very, very weird.

_oaph · December 14, 2025, 12:06pm

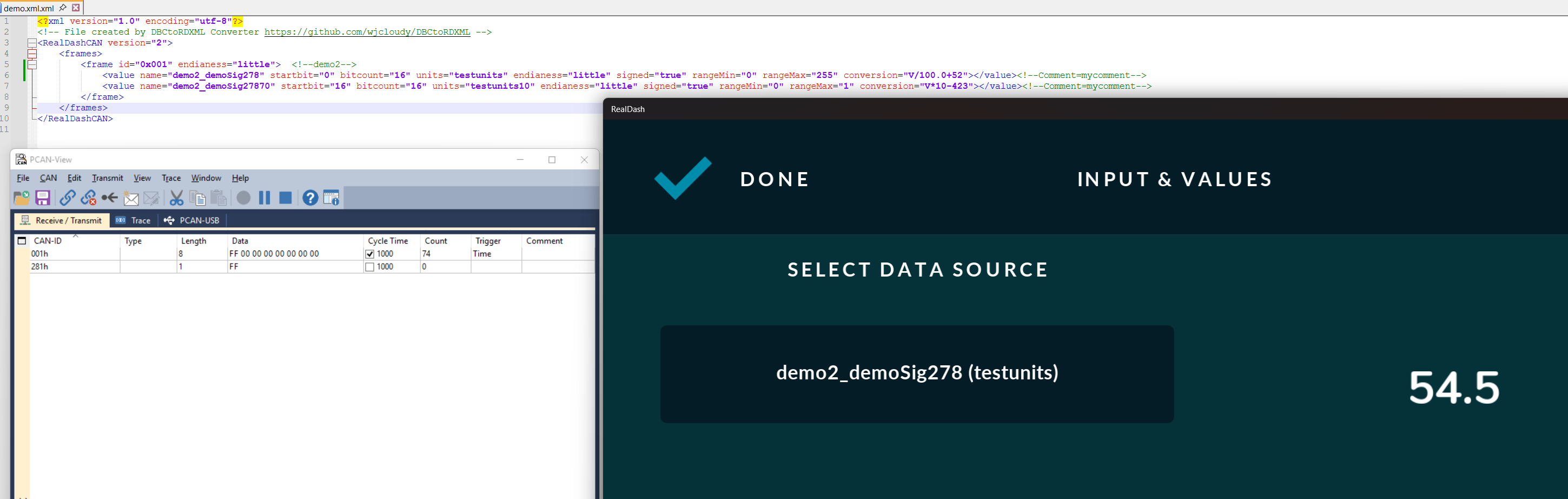

seems like something must have changed in your setup. I just took the latest dbctordxml script, used the demo dbc and tested it here with pcan. it works fine.

So I think we can say yes, the XML is correct.

Roadstercycle · December 14, 2025, 4:47pm

So strange. Data is coming into RD just fine. Just can’t see what could of happened. The 125kbs works just fine in the dash but the 500kbs does not. 2 different 500kbs inputs for a few different things on the dash and neither work. Is there anyway the dash I created back in the day could be corrupted somehow? I don’t see how as I reinstalled the original dash again the other day.

_oaph · December 14, 2025, 5:00pm

Sorry that’s beyond my RD knowledge - I’m a total newbie here. You can see both the 500kbs feeds in the RD can monitor? - these are three different can busses right?

Roadstercycle · December 14, 2025, 5:27pm

Yes, 3 different can bus lines, all 60 ohm, all read fine in RD and Pcan. I think it was a solar flare at this point. Even tried a different lap top. The unit in my car deciphering all this is windows 10 and the laptop is windows 10. It’s been working for a year and a half at this point. Thank you for taking a look at this.

_oaph · December 14, 2025, 6:09pm

(just in case you didn’t already try these… I’m at a loss of other ideas just now)

do the signals display in a clean new dash file? (just for talkings sake)
what happens if you use the online XML generator and map to those signals?

Roadstercycle · December 14, 2025, 7:04pm

I’m going to try that after I get home today.

realdashdev · December 17, 2025, 10:42am

Latest update may have a fix for this:

RealDash version 2.6.2 - General / Announcements and updates - RealDash Forum

Roadstercycle · December 18, 2025, 7:25pm

Yes, this did work with my original files which was great. Skippy (I named my ChatGPT5 assistant that) found a work around I was in the process of using it when I got the email saying there was an update 2.6.2 so I tried my old XML and everything started working fine. So thank you very very much.
