Prease Help ：Fuel Level settings

General
1

In the FUEL Level settings, connect the sensor to LINK ECU analogue input 4. When empty, it reads 0.15V; at full tank (70L), it reads 1.36V.
If this allows creation of the additional link_ecu_short2.xml file, please do so. Other LINK ECUs are connected via Transmit generic Dash2;
please advise on the necessary CAN settings.

1 Like
2

You can use custom map to configure the fuel level.
in 30 out 00
in 275. out 100.
If you are using percentage use 100, if you are using liters use 70. This is to start, then refine the configuration.

3

Hi Thank you for the advice. I didn’t use the custom map. I replaced the AnVolt4 in LINK with Lambda1, placed it in REALDASH’s Lambda1, calibrated it, and got both the indicators and gauges working.
thank you for your assistance.

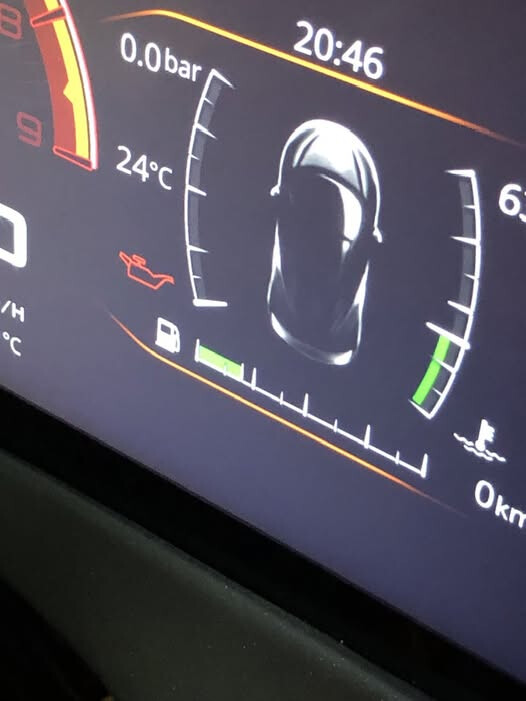

image526×701 45.9 KB
