Alright, i made some kind of a sketch and i struggle with few things.

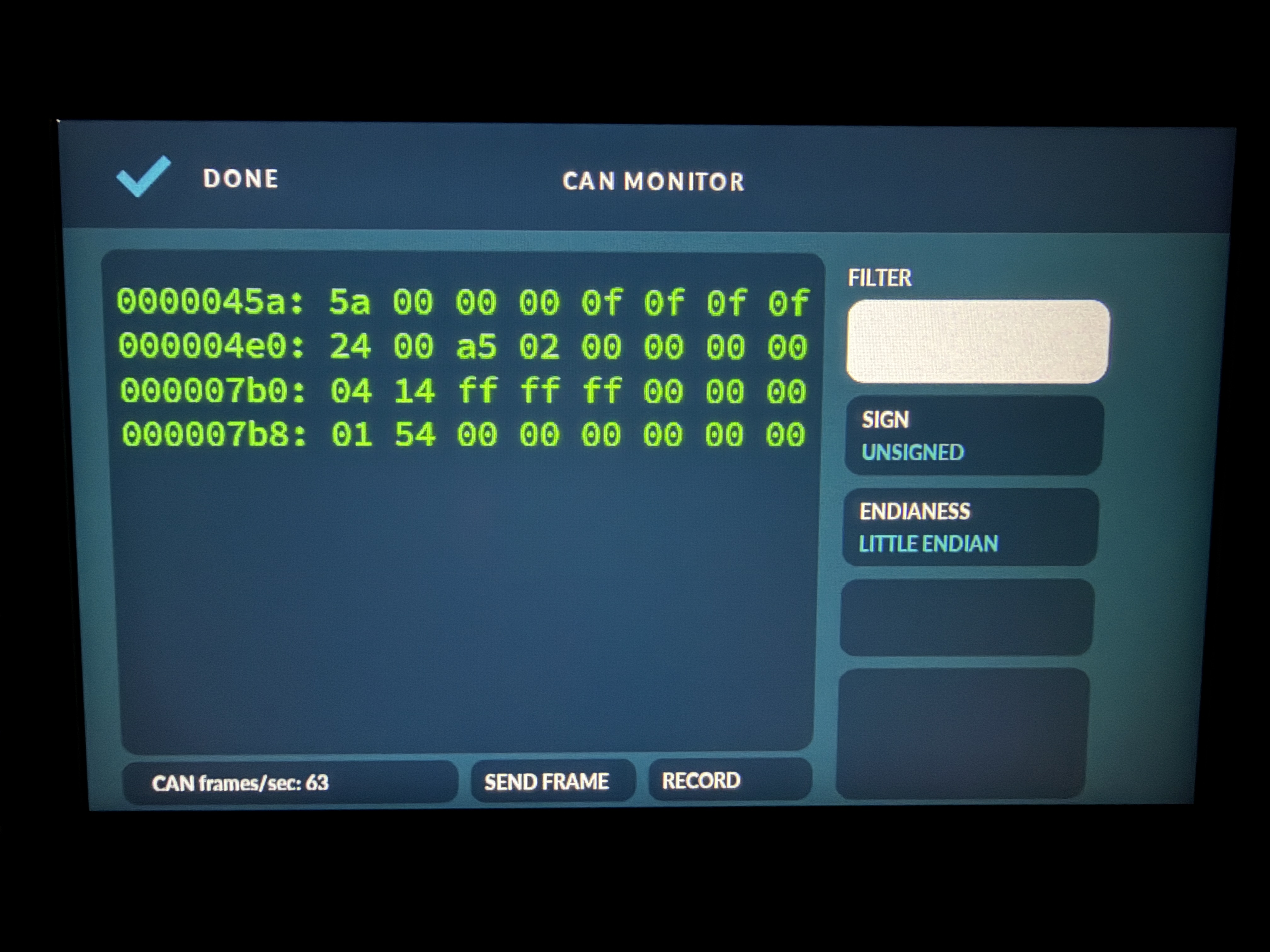

I managed to get RPM and coolant temperature to RealDash.
With this sketch these works sometimes and sometimes not, usually coolant temperature is missing.
Anyway, i had connector for ABS unit disconnected and RPM seemed to work fine, no lag.
When i connect it RPM needle has a lag. Maybe that error is in the code, or can Arduino with CAN-shield be too slow?
Also i tried to get some fault indicators to work, tested in sketch, for now no luck.
For example in CAN-frame 0x480, there in byte1 and in bit4 is engine MIL and in bit6 glow plug light (not so sure).
Would bitRead function work with this?
Comments are welcome.
#include <mcp_can.h>
#include <SPI.h>
long unsigned int rxId;
unsigned char len = 0;
unsigned char rxBuf[8];
char msgString[128]; // Array to store serial string
#define CAN0_INT 2 // Set INT to pin 2
MCP_CAN CAN0(9); // Set CS to pin 9
int rpm;
int coolant;
bool glow;
bool engineMIL;
void setup()
{
Serial.begin(115200);
// Initialize MCP2515 running at 16MHz with a baudrate of 500kb/s and the masks and filters disabled.
if(CAN0.begin(MCP_ANY, CAN_500KBPS, MCP_16MHZ) == CAN_OK)
Serial.println("MCP2515 Initialized Successfully!");
else
Serial.println("Error Initializing MCP2515...");
CAN0.setMode(MCP_NORMAL); // Set operation mode to normal so the MCP2515 sends acks to received data.
pinMode(CAN0_INT, INPUT); // Configuring pin for /INT input
}
void loop()
{
if(!digitalRead(CAN0_INT)) // If CAN0_INT pin is low, read receive buffer
{
CAN0.readMsgBuf(&rxId, &len, rxBuf); // Read data: len = data length, buf = data byte(s)
sprintf(msgString, "Standard ID: 0x%.3lX DLC: %1d Data:", rxId, len);
for (byte i = 0; i < len; i++) {
sprintf(msgString, " 0x%.2X", rxBuf[i]);
// Serial.print(msgString);
}
if (rxId == 0x280) {
uint16_t rawRPM = (uint16_t)rxBuf[2] << 8;
rawRPM |= rxBuf[3];
rpm = rawRPM/4;
}
else if (rxId == 0x288) {
uint8_t rawCOOLANT = (uint8_t)rxBuf[1];
coolant = rawCOOLANT * 0,75-48;
}
else if (rxId == 0x488) {
glow = bitRead(rxBuf[1],7);
engineMIL = bitRead(rxBuf[1],4);
}
}
SendCANFramesToSerial();
}
void SendCANFramesToSerial()
{
byte buf[8];
// build & send CAN frames to RealDash.
// a CAN frame payload is always 8 bytes containing data in a manner
// described by the RealDash custom channel description XML file
// build 1st CAN frame, RPM, MAP, CLT, TPS
buf[0] = (0x49);
buf[1] = (0xff);
buf[2] = ((rpm >> 8) & 0xff);
buf[3] = (rpm & 0xff);
buf[4] = (0xff);
buf[5] = (0xff);
buf[6] = (0xff);
buf[7] = (0xff);
// write first CAN frame to serial
SendCANFrameToSerial(3200, buf);
// build 2nd CAN frame, coolant
buf[0] = (0xff);
buf[1] = (coolant & 0xff);
buf[2] = (0xff);
buf[3] = (0xff);
buf[4] = (0xff);
buf[5] = (0xff);
buf[6] = (0xff);
buf[7] = (0xff);
// write 2nd CAN frame to serial
SendCANFrameToSerial(3201, buf);
// build 3rd CAN frame, glow and engineMIL
buf[0] = (0xff);
buf[1] = glow;
buf[2] = engineMIL;
buf[3] = (0xff);
buf[4] = (0xff);
buf[5] = (0xff);
buf[6] = (0xff);
buf[7] = (0xff);
// write 2nd CAN frame to serial
SendCANFrameToSerial(3202, buf);
}
void SendCANFrameToSerial(unsigned long canFrameId, const byte* frameData)
{
// the 4 byte identifier at the beginning of each CAN frame
// this is required for RealDash to 'catch-up' on ongoing stream of CAN frames
const unsigned long serialBlockTag = 0x11223344;
Serial.write((const byte*)&serialBlockTag, 4);
// the CAN frame id number
Serial.write((const byte*)&canFrameId, 4);
// CAN frame payload
Serial.write(frameData, 8);
}
